4GP-1200DAQ 柴油出口版 作业平台+自动驾驶

产品属性

  • 所属类别:自走式 果园作业平台
  • 商品来源:中颐农装
  • 浏览次数:1718
  • 发布日期:2021-10-07 10:35:14
  • 产品概述

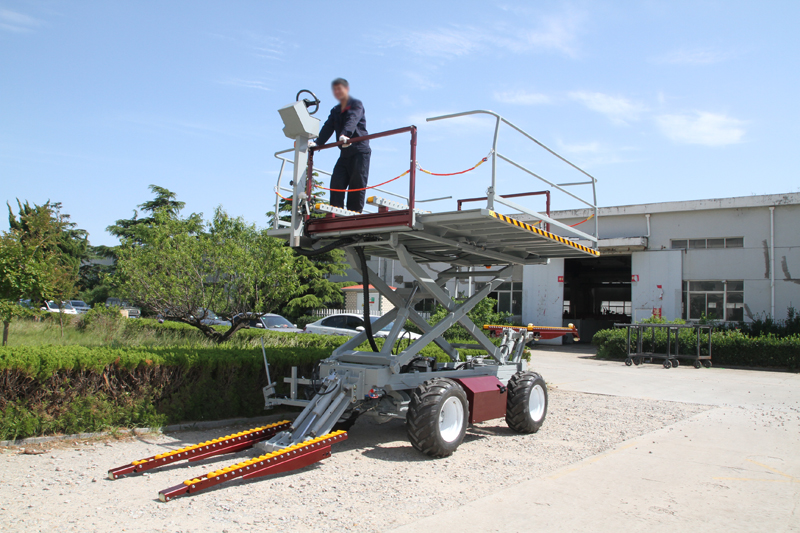

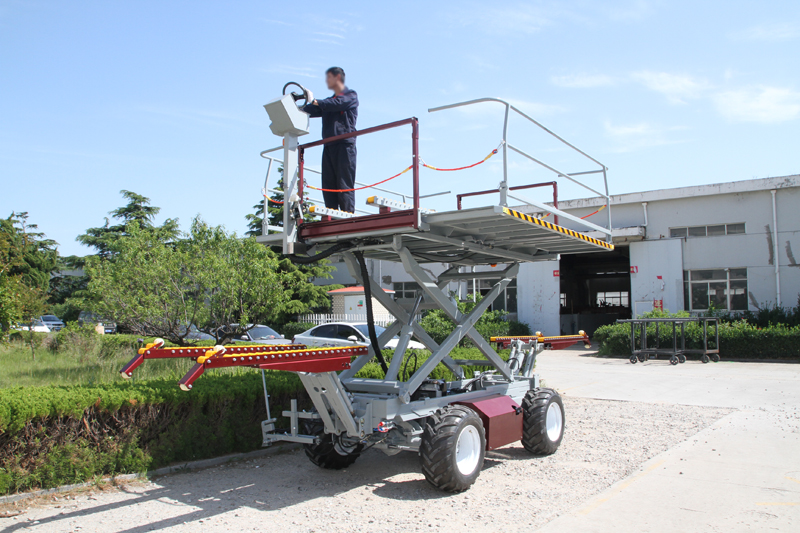

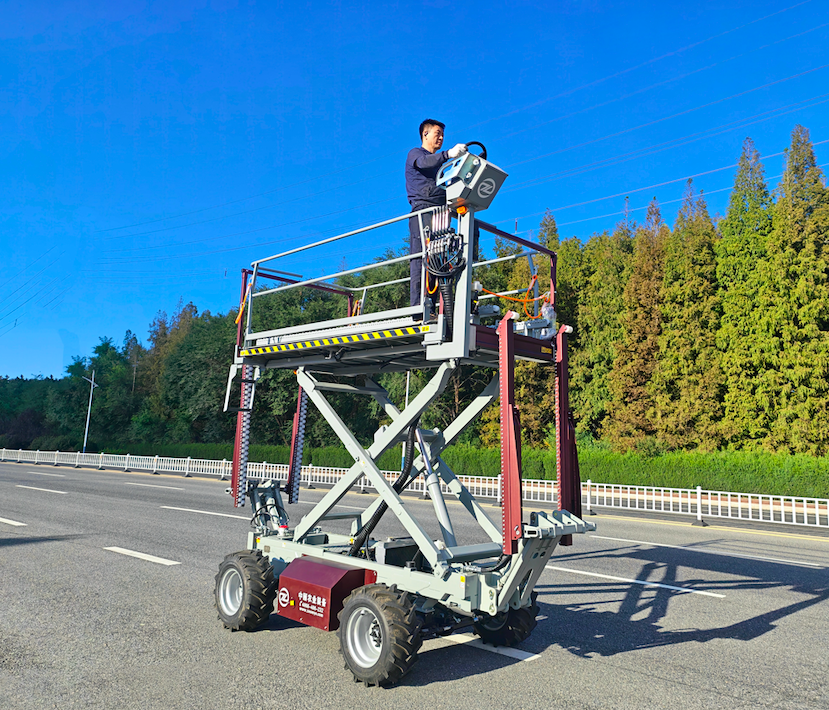

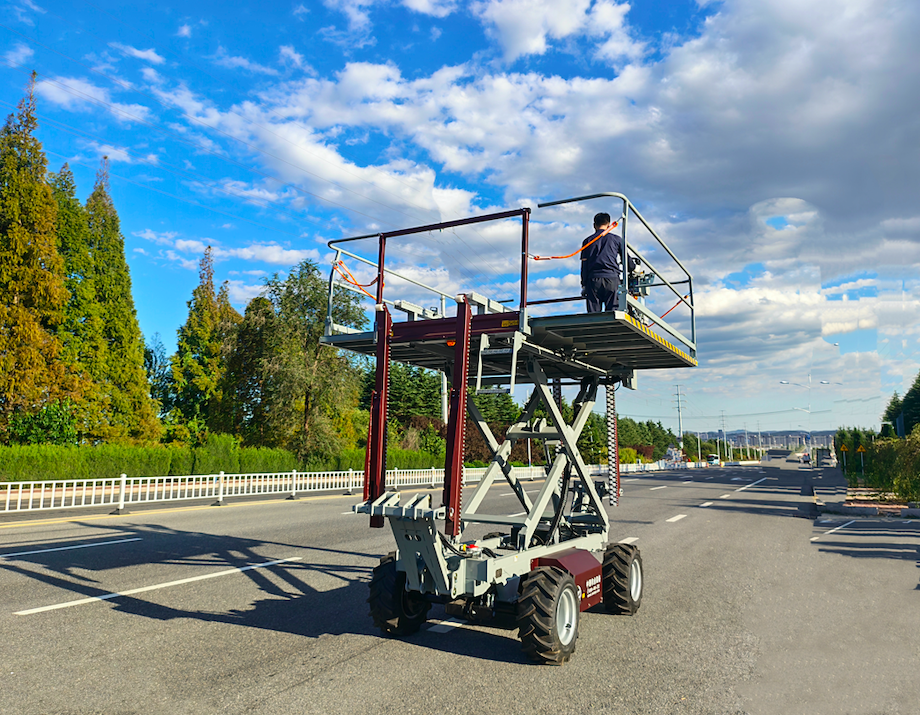

4GP-1200DA 柴油全液压驱动 采摘作业平台

4GP-1200DA diesel full hydraulic drive picking platform


描述Description:


4GP-1200DA  柴油全液压驱动 采摘作业平台是中颐公司为中大规模园区用户开发的一款 柴油全液压全尺寸 4轮4驱 采摘作业平台,展开作业面3m x 3m,能同时容纳作业人员6-8人+2个500公斤标准大果筐,是中颐1200系列平台的高端产品,具有卓越的越野能力、强劲的动力性能、极好的操作舒适性、高效率、高可靠、高寿命、高燃油经济性、易维护等特点。

4GP-1200DA diesel full hydraulic drive picking operation platform is a diesel full hydraulic full size four wheel four drive picking operation platform developed by Zoomye Company for medium and large-scale park users. The operating surface is 3m x 3m, which can accommodate 6-8 operators+2 500 kg standard fruit baskets at the same time. It is a high-end product of Zoomye 1200 series platform. It has excellent off-road ability, strong power performance, excellent operation comfort, high efficiency, high reliability High life, high fuel economy, easy maintenance and other characteristics.



适合作物:苹果、梨、樱桃、桃子、柑橘、烟草、立体种植的蔬菜等

Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc

适合用户群: 中大规模园区

Suitable for user groups: medium and large-scale parks



●标配日本洋马、久保田 柴油发动机

● Japanese Yanmar or Kubota diesel engines

●全时4轮4驱  越野能力强 牵引力大

● Full time 4WD off-road capability, strong traction

●操控简单易学 行走无级调速

●Easy to operate and learn  Stepless speed regulation for walking

●采用高强度车身结构

● High strength body structure

●采用“零”落差工作台面 设计

● "Zero" drop worktable design

●采用倾角可调护栏结构

● Adopt adjustable angle guardrail structure

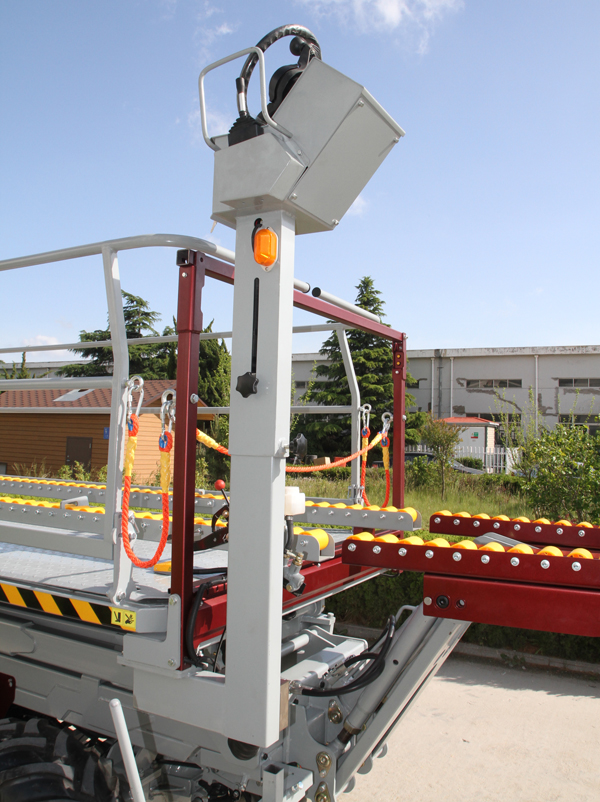

●采用可升降控制台

● Adopt the lifting console

●采用名牌电器件 电控系统可靠耐用

●Brand electrical components are used, ensures reliable and durable electrical control system

●采用商用车辆高标准线束

● High standard harness of commercial vehicles

●采用一体化仪表 电子监控系统

● Adopt integrated instrument electronic monitoring system

●采用欧美名牌液压部件  高可靠高效率

● Adopt European and American famous hydraulic components with high reliability and efficiency

●整机结构件激光切割成型 精度极高

●Complete machine structure is formed by laser cutting with high precision

●全系标配 加宽越野轮胎

●Standard widened off-road tire are equipped as a standard for the whole series

●采用抗紫外线耐候油漆涂层

●UV resistant and weather resistant paint coating

●采用重型前后驱动桥

● Heavy duty front and rear drive axles

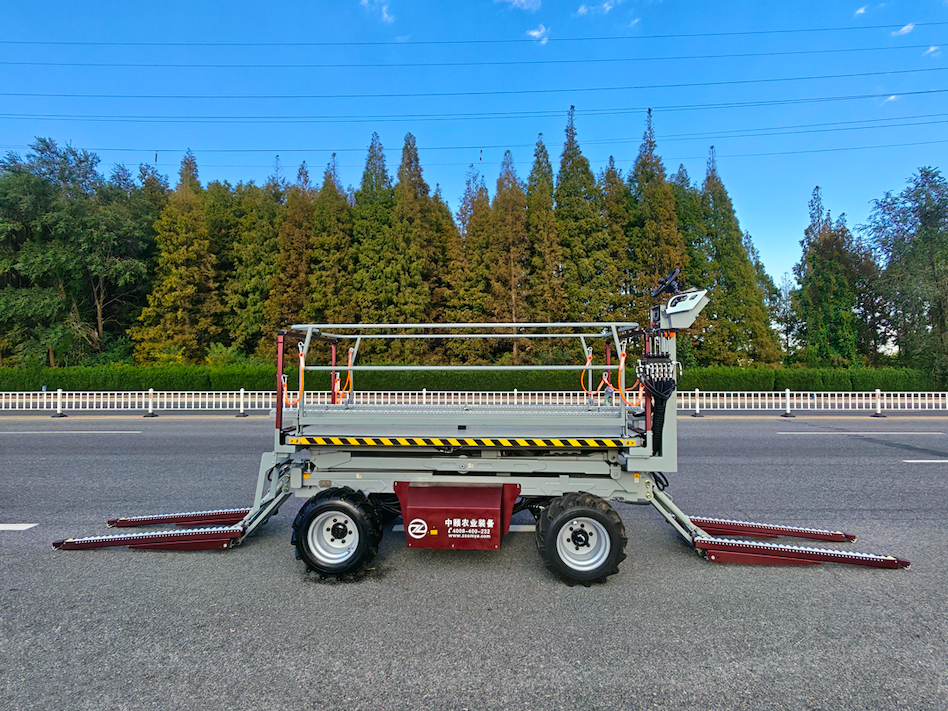

●标配前后液压举升叉 装卸机构 采摘装卸更便捷

●Standard front and rear hydraulic lifting fork loading and unloading mechanism is more convenient for picking and unloading



4GP-1200DA 果园采摘作业平台 产品规格表

Product Specification Table of 4GP-1200DA Orchard Picking Platform



序号

Serial No

项    目

Item

单位

Unit

主要参数

Main Parameter

1

型号名称 Model Name

/

4GP-1200DA型果园采摘作业平台

4GP-1200DA series orchard picking platform

2

结构型式 Structural Style

/

自走式

Self-propelled type

3

驱动型式 Driving Type

/

四轮驱动(全时四驱)4WD(full-time)

4

升降机构类型 Type of lifting   mechanism

/

剪叉式 Scissor fork type

5

转向型式Steering type

/

液压动力转向(方向盘)

Hydraulic power steering

 (steering wheel)

6

配套动力型式Type of support power

/

内燃机(日本洋马/久保田)

Internal combustion engine

(Japan Yanmar/Kubota)

7

配套动力Supporting power

kW

18.5

8

整机外形尺寸(长×宽×高)

Maximum Overall dimension(L*W*H)

mm

3750×1790×2600

9

工作台最大尺寸(长×宽)

Maximum dimension of work platform(L*W)

mm

3000×3000

10

额定载荷Rated load

kg

1200

11

举升负载量Lifting Load

kg

1000

12

升降高度范围Lifting height range

mm

1170~2700

13

最小离地间隙

Minimum ground clearance

mm

210

14

轮胎型号(前轮/后轮) Tire   type(Front/Rear)

/

29×12.50-15/29×12.50-15

15

爬坡能力 Climbing  ability

%

20

16

轮距/轨距 Wheel tread

mm

1455

17

工作台横向最大调平角度

Maximum   Horizontal leveling angle of

work platform

°

/

18

工作台纵向最大调平角度

Maximum Longitudinal leveling angle of

work platform

°

/

19

平台升降速度

Platform rising &   falling speed

mm/s

额定负载升速:60;空载升速:80

额定负载降速:130;空载降速:120

Rated load speed rise: 60;

 No load speed rise: 80

Rated load   deceleration: 130;

No load deceleration: 120

20

最大沉降量Maximum subsidence

mm

8

21

行走速度范围 Travel speed range

m/s

0~1.94

22

转弯半径Turning radius

m

Abt.4.8





※选装配置Optional:


M常柴25马力  电喷发动机  M Changchai 25hp EFI engine

N日本洋马35 马力 发动机   N Japanese Yanmar 35hp engine

O 高低速 行走系统     O High and low speed traveling system

P 定速巡航 暂停功能    P Cruise control suspension function

Q 定速巡航 自动转向系统  Q Cruise control automatic steering system

R 平台横向调平系统  R Horizontal leveling system of platform

S 平台纵向调平系统  S Longitudinal leveling system of platform

D 夜间工作灯 D Night work light

E 遮阳蓬      E Sunshade

J 折叠座椅    J Folding seats

C MP3播放器 C MP3 player

I  护栏置物袋 I Guardrail storage bag



*参数表仅描述了基本参数,选装配置参数请咨询中颐公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*规格参数及外观,随产品开发不断更新,具体参数请咨询中颐公司,以中颐公司最新参数为准,以上参数不作为整机验收依据。

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
