多功能撒肥机系列 (施肥机 撒粪车 撒粪机 撒布车)
Multi-function Manure spreader series (fertilizer spreader 、manure spreader 、Organic fertilizer spreader)
描述Description：
多功能施肥机系列产品是我公司技术团队于2015年针对现代化果园施用有机肥及大化肥作业难度大、劳动强度高、工作效率低的需求，自主研发的拥有完全知识产权的高效固体物料撒布机械。可以对禽畜固体粪便有机肥、酒糟、糖渣、花生壳、稻壳、木粪、石灰、化肥、微肥等固体物料进行开沟深施、单双侧抛撒、定向输送等田间作业。可根据农艺要求附加大化肥及微量元素肥料箱，实现多种物料混合使用。该系列撒肥机曾因其高作业效率及创新性被CCTV-17 农业农村频道《我爱发明》栏目重点报道。
The multi-functional fertilizer applicator series products are highly efficient solid material spreading machines with full intellectual property rights independently developed by our technical team in 2015 to meet the requirements of difficult, high labor intensity and low work efficiency of applying organic fertilizer and large chemical fertilizer in modern orchards. It can be used for deep application of solid materials such as organic fertilizer, distiller's grains, sugar residue, peanut shells, rice husks, wood dung, lime, chemical fertilizer, micro fertilizer, etc. Large chemical fertilizer and microelement fertilizer box can be added according to agronomic requirements to realize mixed use of various materials.
This series of fertilizer spreaders has been highlighted by CCTV-17 Agricultural and Rural Channel's "I Love Invention" column for its high operating efficiency and innovation.
●整机主要液压件 采用欧美 世界名牌
● The main hydraulic parts of the whole machine are European and American famous brands
●整机全液压驱动 无级调速 操作简便
● Full hydraulic drive stepless speed regulation of the whole machine is easy to operate
●不需使用传动轴与拖拉机连接 转弯半径小
● No need to use the transmission shaft to connect with the tractor. The turning radius is small
●传送链排恒速输送 出肥量均匀稳定
● The conveyor chain row delivers fertilizer evenly and stably at constant speed
●高强度链排刮板结构 对各种物料适应性强
High strength chain scraper structure has strong adaptability to various materials
●全系标配不锈钢料箱 终生免维护
● All standard stainless steel bins are maintenance free for life
●特殊设计的料箱倾角 出料干净
● The specially designed hopper inclination is clean
●高强度车架结构 机械装填无忧
● High strength frame structure can be mechanically loaded without worry
●多功能设计集开沟、施肥、覆土、抛撒于一体
● Multi functional design integrates trenching, fertilization, soil covering and scattering
●多种配套辅具可灵活选装
● A variety of supporting accessories can be flexibly installed
●效率极高 单人单机轻松作业代替多人团队艰苦作业!省工省钱!
● Very efficient single person single machine easy operation instead of multi person team hard work! Save labor and money!
1、果园系列(2-5m³) Orchard series (2-5m ³)
(1)单侧开沟 (1) Single side ditching
(2)单侧抛撒 (2) Unilateral scattering
(3)双侧抛撒 (3) Bilateral dispersal
※选装 双侧开沟、底盘升降、视频监控系统
※Optional double side ditching, chassis lifting and video monitoring system
2、大田系列(2-10m³) Daejeon series (2-10m ³)
(1)后双抛撒盘式 (1) Rear double throwing tray type
(2)横蛟龙式(2) Horizontal Dragon Style
(3)双竖蛟龙(3) Double Vertical Dragon
※选装 视频监控系统
※ Optional video monitoring system
3、苗圃系列(2-10m³) Nursery series (2-10m ³)
苗圃系列木粪撒布机是我公司根据苗圃企业对压苗床多次撒布木粪农艺要求，在施肥机基础上经过结构调整、功能调整而二次开发的专门针对苗圃等应用场景的专用机器。该系列机型采用了前置定向出料结构，增加了辅助下料机构，采用高地隙设计。
Nursery series wood manure spreader is a special machine specially developed for nursery and other application scenarios after structural adjustment and functional adjustment on the basis of fertilizer spreader according to the agronomic requirements of nursery enterprises for multiple times of spreading wood manure on the seedling bed. This series of models adopts a front oriented discharging structure, an auxiliary blanking mechanism and a high clearance design.

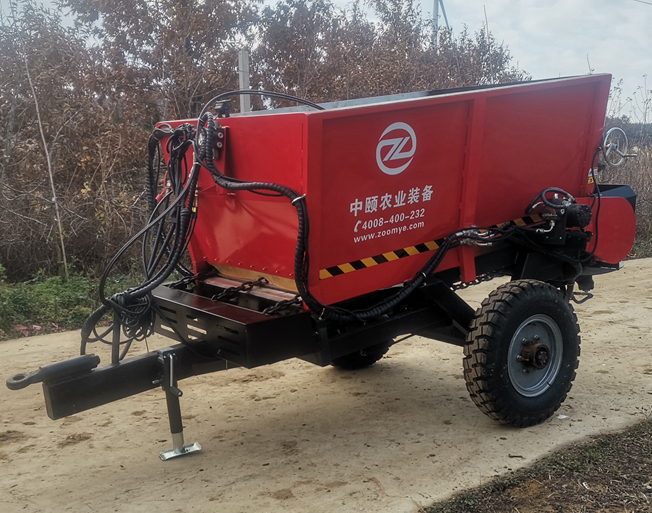

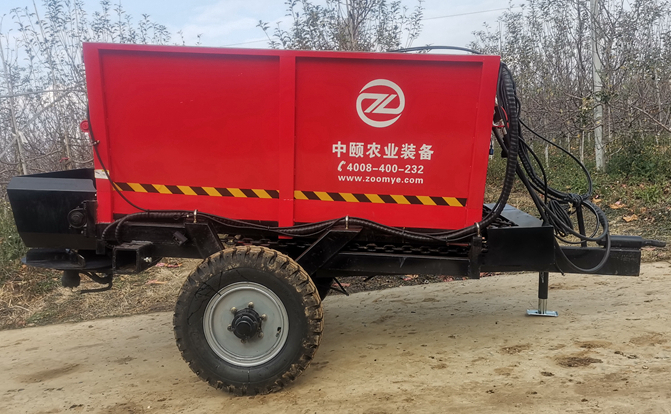

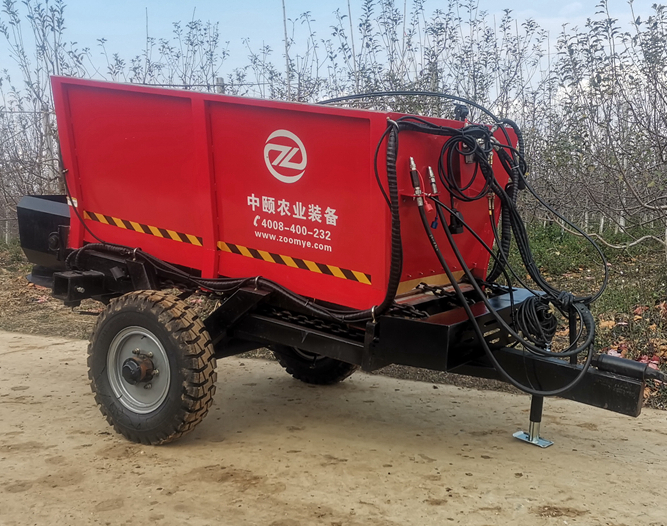

2FGH-2.3 / 2FGH-3型撒肥机（施肥机）产品规格表
Product specification table of 2FGH-2.3/2FGH-3 Manure spreader
序号 Serial No. | 项目 Item | 单位 Unit | 主要参数 Main parameter | |
1 | 型号名称Model Name | / | 2FGH-3型撒肥机 2FGH-3 Manure spreader | 2FGH-2.3型撒肥机 2FGH-2.3 Manure spreader |
2 | 结构型式Structural Style | / | 厢体Body | 厢体Body |
3 | 作业方式 Operation mode | / | 后抛撒 Rear scattering | 后抛撒 Rear scattering |
4 | 料厢内廓尺寸（长×宽×高） Overall dimensions of the compartment (L×W×H) | mm | 上部(长×宽) Upper (L×W) ：2771×1433 下部(长×宽) Lower(LxW):2701×1056 高 H：890 | 上部(长×宽) Upper (L× W)：2121×1433 下部(长×宽) Lower(LxW):：2052×1056 高H：890 |
5 | 料厢容积 Bin volume | m3 | 3 | 2.3 |
6 | 最大载重量 Maximum load | kg | 3600 | 2600 |
7 | 配套动力值（范围） Supporting power value (range) | kW | 36.8～73.5 | 36.8～73.5 |
8 | 施肥装置型式 Fertilizer application device type | / | 后置双圆盘撒布 | 后置双圆盘撒布 |
9 | 肥料输送方式 Fertilizer transportation mode | / | 液压链板推送 Hydraulic chain plate pushing | 液压链板推送 Hydraulic chain plate pushing |
10 | 抛撒宽度 Spreading width | m | ≥5 | ≥5 |
11 | 承重车桥数量 Number of load-bearing axles | 个 Pcs. | 1 | 1 |
12 | 轮距 Wheel tread | mm | 1550 | 1550 |
13 | 轮胎规格 Tyre type | / | 7.50-16 10.5/65-16 | 7.50-16 10.5/65-16 |
14 | 轮胎数量 Tyre Amount | 个 Pcs. | 2 | 2 |
15 | 施肥深度 Fertilizer application depth | cm | / | / |
16 | 外形尺寸（长×宽×高） Overall dimensions (L × W × H) | mm | 4900×2000×1860 | 4270×2000×1860 |
17 | 作业速度 Operating speed | km/h | 2.5~5 | 2.5~5 |
18 | 生产率 Productivity | hm2/h | ≥0.53 | ≥0.53 |
19 | 结构质量 Structural quality | kg | 1220 | 1070 |
*参数表仅描述了基本参数，高配高功率及选装配置参数请咨询中颐公司。
*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.
*规格参数及外观，随产品开发不断更新，具体参数请咨询中颐公司，以中颐公司最新参数为准，以上参数不作为整机验收依据。咨询电话 4008-400-232
*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
