果树树下避障割草机(简易型)

产品属性

  • 所属类别:果园割草锄草机系列
  • 商品来源:中颐农装
  • 浏览次数:672
  • 发布日期:2021-10-07 10:13:50
  • 产品概述

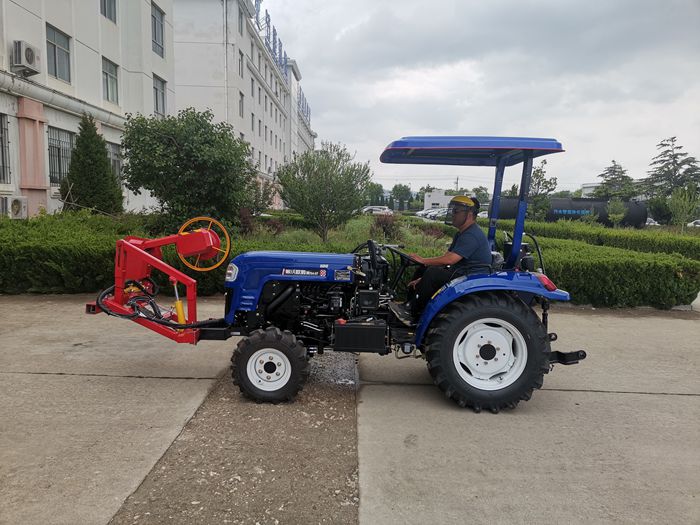

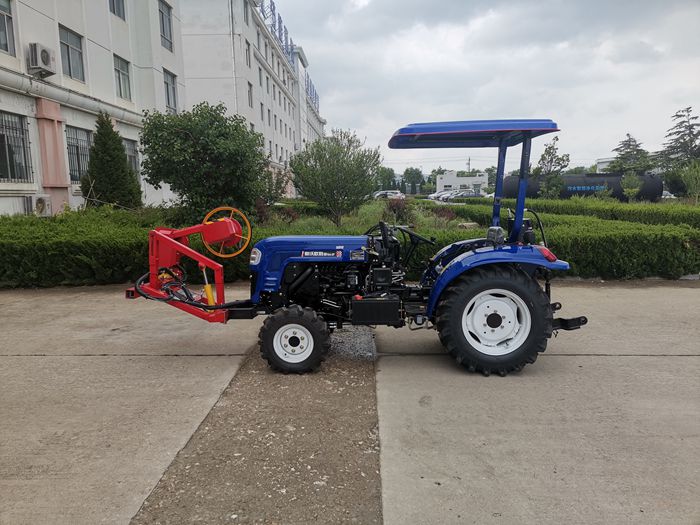

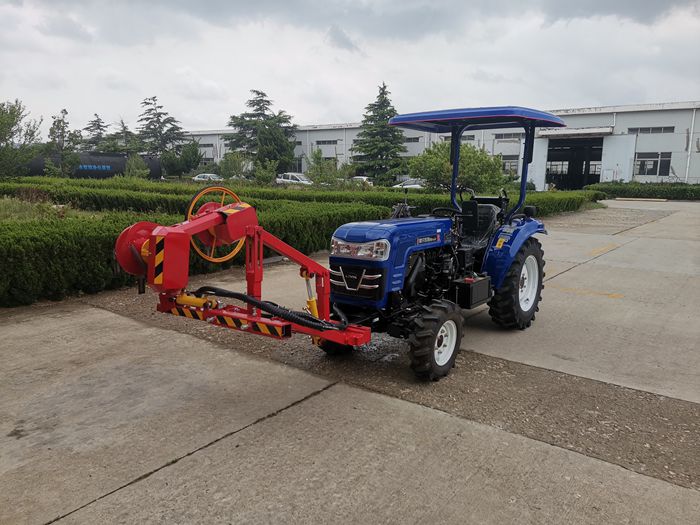

OAM900A果树树下避障割草机(简易型)

OAM900A Obstacle avoidance mower under fruit trees (simple type)


描述Description:

果树树下避障割草机 是中颐公司 为解决现代化果园果树树下割草缺乏相应装备而研发的一款结构简单、操作便捷的 拖拉机前置悬挂 全液压传动割草机。该机所有动作均由液压传动与控制,操作者可根据不同工况、地貌灵活调节切削角度,灵活调整刀盘高度;避障机构采用可调整涨紧力的弹簧机构+滚轮机构,结构简单而不易损坏;割刀部分采用28片甩刀,割草效率高且不易缠草;割草机安装在拖拉机前方,及其方便操作者观察前方工况,灵活调整割草机状态。

The obstacle avoidance mower under fruit trees is a fully hydraulic drive mower with simple structure and convenient operation, which is developed by Zhongyi Company to solve the problem of the lack of corresponding equipment for mowing under fruit trees in modern orchards. All movements of the machine are hydraulically driven and controlled. The operator can flexibly adjust the cutting angle and cutter head height according to different working conditions and landforms; The obstacle avoidance mechanism adopts a spring mechanism with adjustable tension force+a roller mechanism, which is simple in structure and not easy to be damaged; Two groups of 8 flail knives are used for the cutter part, which has high cutting efficiency and is not easy to wrap grass; The mower is installed in front of the tractor, which is convenient for the operator to observe the working conditions ahead and flexibly adjust the state of the mower.



果树树下避障割草机(简易型)主要参数

Main parameters of obstacle avoidance mower under fruit trees (simple type)


序号

Serial   No.

项目

Item

单位

Unit

主要参数

Main   parameter

1

型号名称

Model Name

/

避障割草机

Obstacle   avoidance mower

2

刀盘高度升降幅度

Height rise and fall of cutter head

mm

400

3

刀盘左右调节幅度

Left and right adjustment range of cutter   head

mm

700

4

刀盘割幅Cutter   head cutting range

mm

900

5

安装方式Installation   method

/

拖拉机前置悬挂

Tractor   front suspension

6

配套动力Supporting   power

Kw

≥22Kw 拖拉机  Tractor

7

配套拖拉机配置要求

Matching   tractor configuration requirements

/

≥1组液压输出

液压系统流量≥20L

≥ 1   group of hydraulic output

Hydraulic   system flow ≥ 20L



※选装配置Optional

独立液压站  Independent hydraulic station



*参数表仅描述了基本参数,高配高功率及选装配置参数请咨询中颐公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

 *规格参数及外观,随产品开发不断更新,具体参数请咨询中颐公司,以中颐公司最新参数为准,以上参数不作为整机验收依据。咨询电话 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
