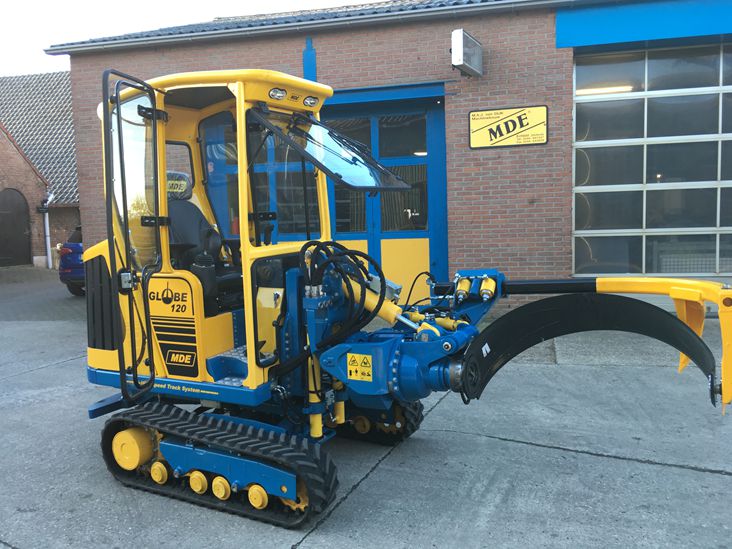

荷兰MDE Globe挖树机

MDE Globe 挖树机

MDE Globe Tree Mover

描述Description：

荷兰MDE Globe挖树机是一款专门设计的苗圃挖树机器，具有作业效率高、机动灵活性强的特点。创新和最佳的部件组合成了MDE挖树机，实现了最佳的性能。MDE挖树机的质量是经用户多年验证的，具有较高的附加值。

MDE Globe是一种特殊设计的树木挖掘机器，在树木苗圃内具有最佳容量和灵活性。在欧洲同类产品中MDE Globe是行驶速度最快的，也是挖树最快的机器。机器的各种功能确保操作员体验到极大的舒适。

每个MDE Globe都有自己的专利刀片固定系统，因此刀片可以在30秒内不用工具更换。该系统确保叶片以液压方式固定在机器上，但也可以闪电般地更换。

The Netherlands MDE Globe tree digger is a specially designed tree digger for nurseries, which is characterized by high operating efficiency and strong flexibility. Innovation and the best components combined into a MDE machine for maximum performance.

Proven quality of MDE, tree diggers with added value.

The MDE Globe is a special designed machine for digging trees with the best capacity and flexibility within the tree nursery. The Globe is by far the fastest in his class by km/h, but also in digging trees. Various features of the machine ensures that the operator of the machine experiences a great comfort.

Each MDE Globe has it own patented Blade-fix system, so a blade can be changed without tools in thirty seconds. The system ensures that the blade is clamped hydraulically to the machine, but can also be changed at lightning speed.

※选装配置：

1.摄像头;

2.舒适驾驶室，配备有：

     - 暖风装置;

     - 窗户配有有色安全玻璃

     - 挡风玻璃，可以打开，提供一个挡风玻璃雨刷。

     - 豪华空气悬浮座椅，带座椅加热功能，可调节扶手。

     - 集成式门把手

     - 带空气弹簧的车门

     - 驾驶室外边缘是平滑的，以防止损坏树木。

3.竹竿插杆器：用于在树旁钻孔，插竹竿。地钻由PLC控制。自动控制时，液位传感器控制PLC，手动控制时，司机自己用操纵杆控制钻孔机。

4.刀片支架：它安装在Globe的后面，因此可以在Globe上运输两个额外的刀片。

5.苗木支架：这是一个可调节的支架，安装在机器的前端。当一棵树被挖好后，树干会靠在支撑物上，防止树倒下。

6.树根网支架+储物箱：安装在Globe的背面，用它可以方便地运输树根网和麻袋片。

7.拖杆：安装在Globe的背面。

型号：

Globe 100，可挖根球直径30厘米--100厘米。

Globe 120，可挖根球直径为30厘米--120厘米。

Globe 140，可挖根球直径为60厘米--140厘米。

※ Optional configuration:

A- Camera;

B- Cabin which is provided with:

C- Heating;

D- Windows with tinted safety glass;

E- Windscreen, which can be opened up, provided with a windscreen wiper;

F - Luxurious airsuspended seat with seat heating with adjustable armrests;

G- Integrated door handles;

H- Doors with gas springs

I- On the outside, the cabin is completely flat and has round corners to prevent tree damage.

J- Canedrill: it is used to drill holes beside trees, where sticks can be inserted. The canedrill can be mounted on the Globe, as well as the controldesk. The canedrill can be operated from this control desk. The cane drill os electrical controlled by a PLC. By automatic control, the level sensor controls the PLC and with manual control, the driver himself controls the canedrill with a joystick.

K- Blade holder: it is mounted at the back of the Globe, so two extra blades can be transported on the Globe.

L- Tree support: This is an adjustable support which is mounted on the front of the Globe. When a tree has been digged, the trunk leans against the support and prevents the tree from falling over.

M- Wire basket support + box for juke: this is mounted on the back of the Globe, with which wire baskets and jute can be easily transported;

N- Towbar: mounted on the back of the Globe.

The following types can be supplied:

Globe 100, a rootball diameter of 30 cm to 100 cm can be made.

Globe 120, a rootball diameter of 30 cm to 120 cm can be made.

Globe 140, a rootball diameter of 60 cm to 140 cm can be made.
