底盘升降果筐运输车

产品属性

  • 所属类别:果园搬运车系列
  • 商品来源:中颐农装
  • 浏览次数:266
  • 发布日期:2022-09-09 08:07:05
  • 产品概述

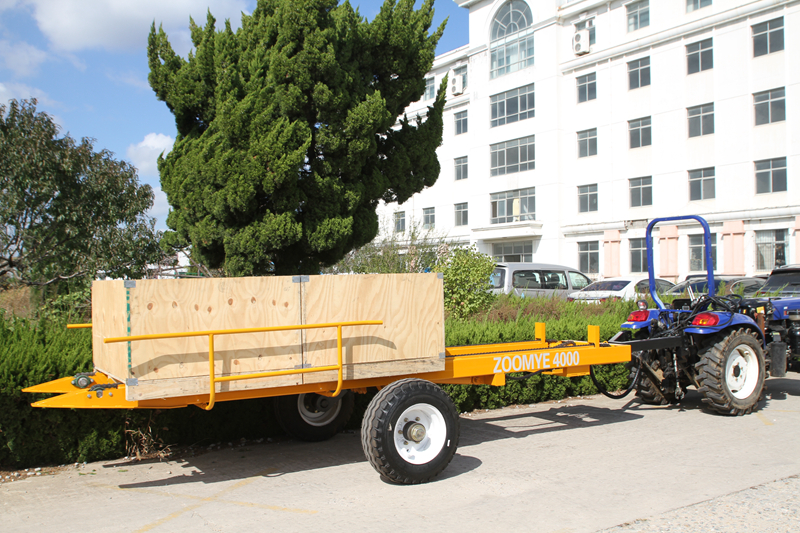

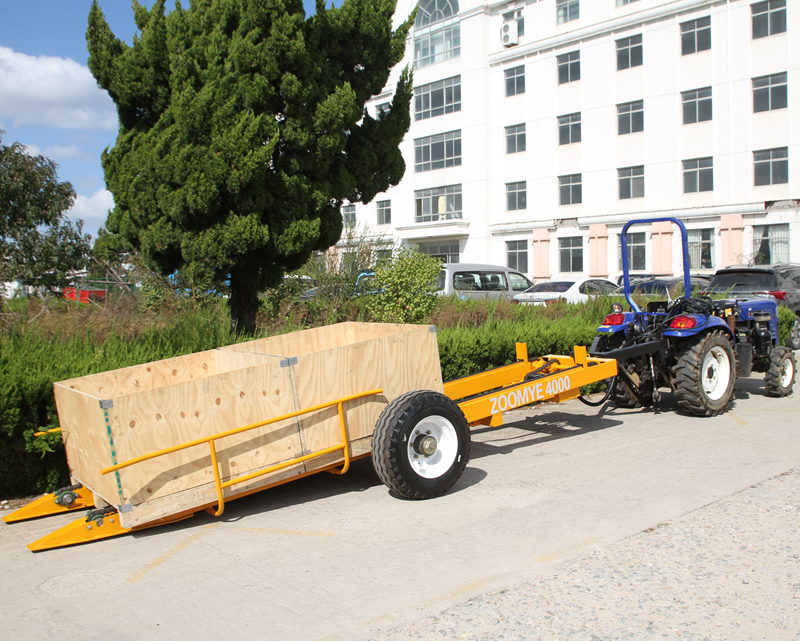

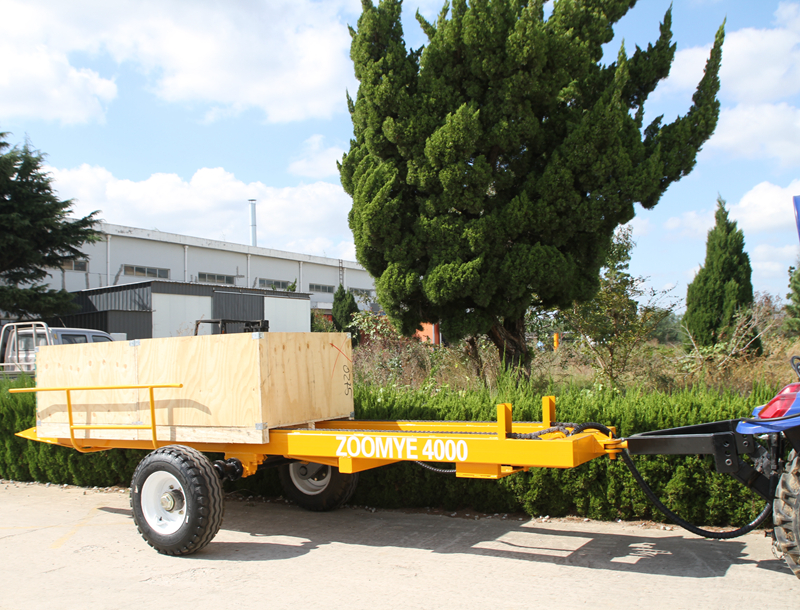

TT2W0-A*底盘升降果筐拖车

TT2W0-A * chassis lifting fruit basket trailer

描述Description:

底盘升降果筐拖车 是 中颐公司 为解决 现代化果园周转大型标准果筐(例如:运输分发空果筐和回收采收满果实的果筐)而研发的智慧转运装备。拖车与拖拉机配套使用,拖车车轴在液压油缸作用下可进行升降(升降幅度可定制),带有液压铰链装置的车架纵梁尾部鸭嘴型叉头在油缸作用下可完美贴合地面,很容易叉入果筐底部,此时由液压铰链将果筐铰送装车。该拖车可一次装载3-5个标准果筐(长度可定制),是背负式叉车之外另一个转运果筐的好方法。



The chassis lifting fruit basket trailer is a smart transport equipment developed by CEA to solve the problem of modern orchard turnover of large standard fruit baskets (such as transportation and distribution of empty fruit baskets and recycling of fruit baskets full of fruits). The trailer is used together with the tractor. The trailer axle can be lifted and lowered under the action of the hydraulic oil cylinder (the lifting range can be customized). The duckbill fork head at the end of the frame longitudinal beam with the hydraulic hinge device can fit perfectly to the ground under the action of the oil cylinder, and it is easy to fork into the bottom of the fruit basket. At this time, the fruit basket is hinged to the truck by the hydraulic hinge. The trailer can load 3-5 standard fruit baskets at a time (the length can be customized), which is a good way to transfer fruit baskets other than backpack forklift.



TT2W0-A*底盘升降果筐拖车  产品规格表

Product Specification Table of TT2W0-A * Chassis Lifting Fruit Basket Trailer


序号

Serial No.



Item



Unit

主要参数

Main Parameter

1

产品型号Model Name

/

TT2W0-A* 底盘升降果筐拖车

Chassis Lifting Fruit Basket Trailer

2

结构型式Structural Style

/

牵引式Traction type

3

配套动力Supporting power

kW

22

4

外形尺寸(长×宽×高)

Overall dimension(L*W*H)

mm

5925x1965x1140(可定制)

(Customizable)

5

额定载荷Rated load

kg

2000

6

轮胎型号Tire type

/

10.0/65-16

7

转弯半径(与拖拉机相关)

Turning radius

(Related to tractors)

m

5.2(雷沃M704拖拉机牵引)

Abt. 5.2   (towed by Lovol M704)

8

升降高度范围

Lifting height range

mm

0-825mm(可定制)

(Customizable)


选装配置Optional:

C车载液压站  On board hydraulic station



*参数表仅描述了基本参数,高配高功率及选装配置参数请咨询中颐公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.



*规格参数及外观,随产品开发不断更新,具体参数请咨询中颐公司,以中颐公司最新参数为准,以上参数不作为整机验收依据。咨询电话 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
