果园采摘列车

产品属性

  • 所属类别:果园搬运车系列
  • 商品来源:中颐农装
  • 浏览次数:227
  • 发布日期:2022-09-09 07:52:12
  • 产品概述

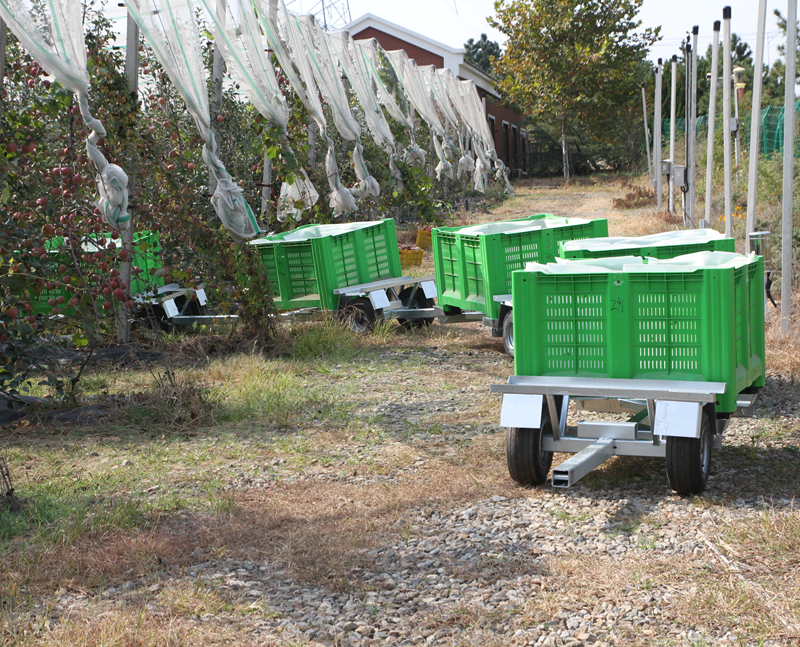

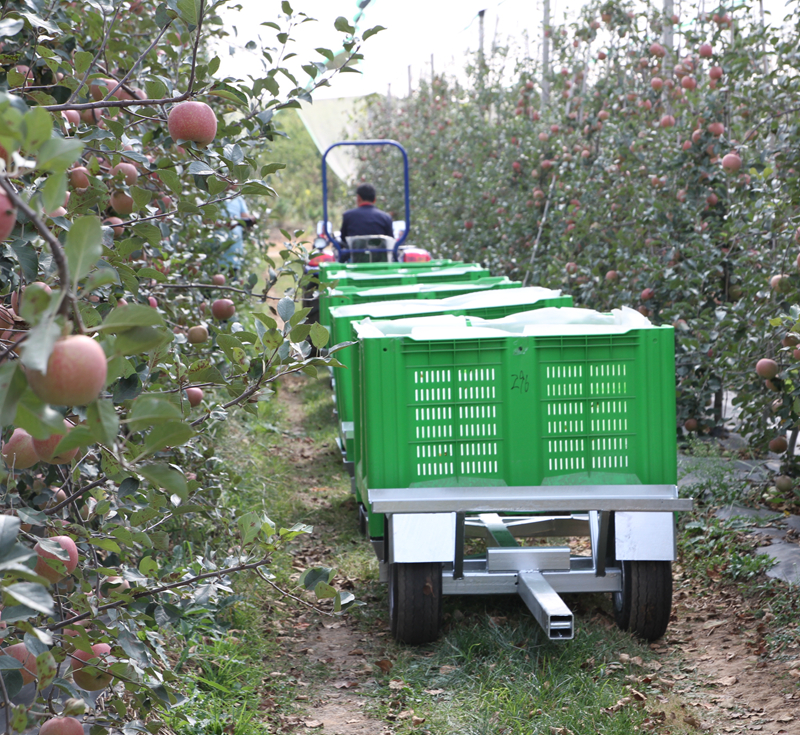

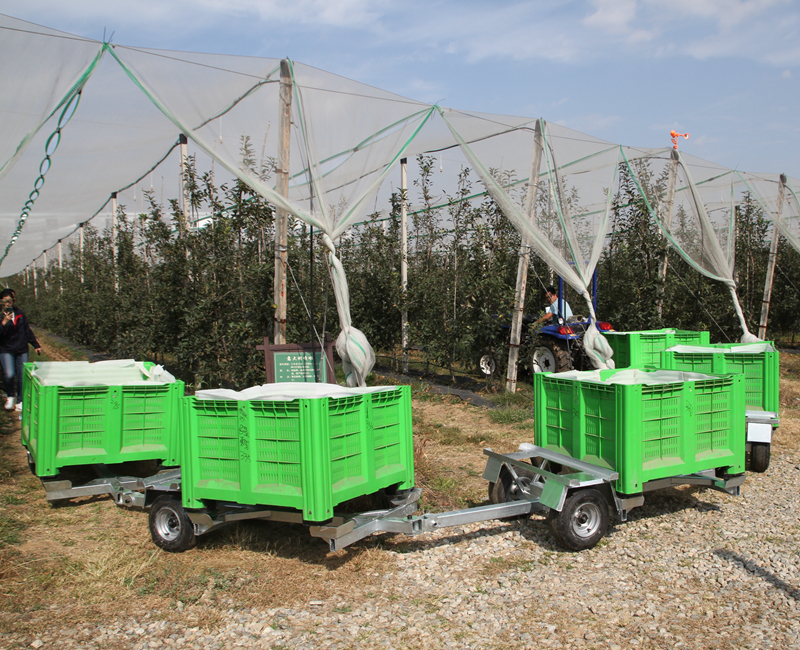

OP2W0-JZ-3采摘列车

OP2W0-JZ-3 Picking Train

描述Description:

采摘列车是我司为提高现代化果园采摘运输周转效率、大幅减少果品碰压伤而设计的果品运输环节专用装备。列车结构设计简洁坚固;整车采用热浸锌表面处理工艺,经久耐用;果筐放置处设有4套经过调校的果筐减震装置,相比传统运输车能极大地减少果品运输途中的损伤率,提高经济效益,可谓小投入大收益。列车轮胎采用高尔夫球车宽体轮胎,能有效减少坑洼路面对果品的颠簸。每4-6列为一个编组,每组列车带有拖拉机牵引支架1件,存放收纳支架1件,方便使用和存放。

 The picking train is a special equipment designed by our company to improve the picking and transportation turnover efficiency of modern orchards and greatly reduce fruit bruises. Train structure design is simple and firm; The whole vehicle adopts hot-dip zinc surface treatment process, which is durable; Four sets of adjusted damping devices for fruit baskets are set at the place where fruit baskets are placed. Compared with traditional transport vehicles, they can greatly reduce the damage rate during fruit transportation and improve the economic benefits, which can be described as "small investment and large income". The wide body tire of golf cart is adopted for the train, which can effectively reduce the bumpiness of the pitted road facing the fruit. Each 4-6 trains are in a formation. Each group of trains is equipped with one tractor traction support and one storage support for easy use and storage.


OP2W0-JZ-3果园采摘列车 产品规格表

Product   Specification Table of OP2W0-JZ-3 Orchard Picking Train


序号

Serial No.

项目

Item

单位

Unit

主要参数

Main parameter

1

外形尺寸(长*宽*高)

 Overall dimensions (L * W * H)

mm

2710*1210*660mm

2

两轮胎外侧间距

Distance between two tires outside

mm

1000mm

3

底盘离地间隙

Chassis ground clearance

mm

185mm

4

额定载荷Rated load

kg

500kg

5

行走方式 Walking mode

拖拉机牵引 Tractor traction

/

6

最小转弯半径

Minimum turning radius

mm

约3500mm(与配套拖拉机轴距相关)

Abt.3500mm (related to the tractor)


车载果筐支架常规尺寸(特殊尺寸需定制)

Regular   size of train mounted fruit basket bracket (special size needs to be   customized)


1

外形尺寸(长*宽*高)

Overall dimensions (L * W * H)

1000*1000mm(支架单方向尺寸可调)

( One way size adjustable)

/

2

外形尺寸(长*宽*高)

Overall dimensions (L * W * H)

1100*1000mm(支架单方向尺寸可调)

( One way size adjustable)

/

3

外形尺寸(长*宽*高)

Overall dimensions (L * W * H)

1130*1130mm(支架单方向尺寸可调)

( One way size adjustable)

/

4

外形尺寸(长*宽*高)

Overall dimensions (L * W * H)

1200*1200mm(支架单方向尺寸可调)

( One way size adjustable)

/

5

外形尺寸(长*宽*高)

Overall dimensions (L * W * H)

如放置小塑料果筐需单独定制托盘

If the small plastic fruit basket is placed, the tray   shall be customized separately

/





*参数表仅描述了基本参数,高配高功率及选装配置参数请咨询中颐公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

 *规格参数及外观,随产品开发不断更新,具体参数请咨询中颐公司,以中颐公司最新参数为准,以上参数不作为整机验收依据。咨询电话 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
