背负式叉车

产品属性

  • 所属类别:果园搬运车系列
  • 商品来源:中颐农装
  • 浏览次数:588
  • 发布日期:2021-10-07 10:06:49
  • 产品概述

背负式叉车 Backpack forklift


描述Description:

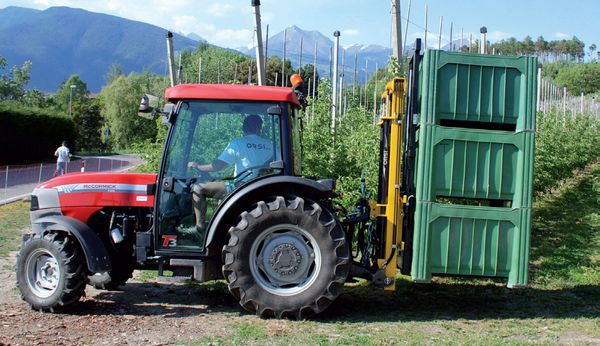

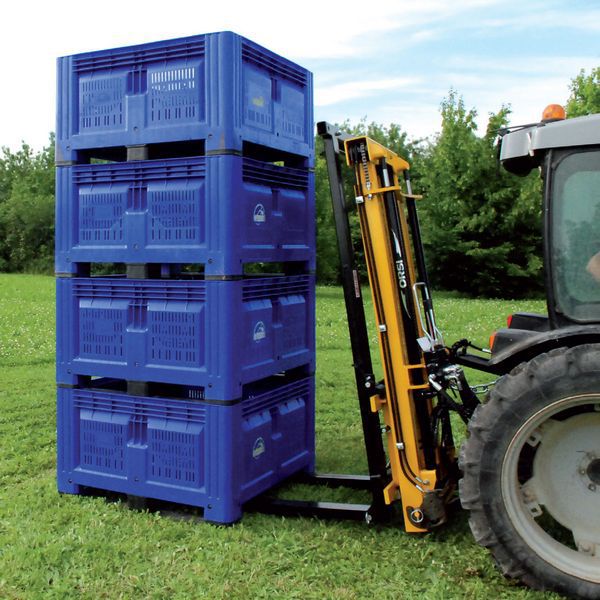

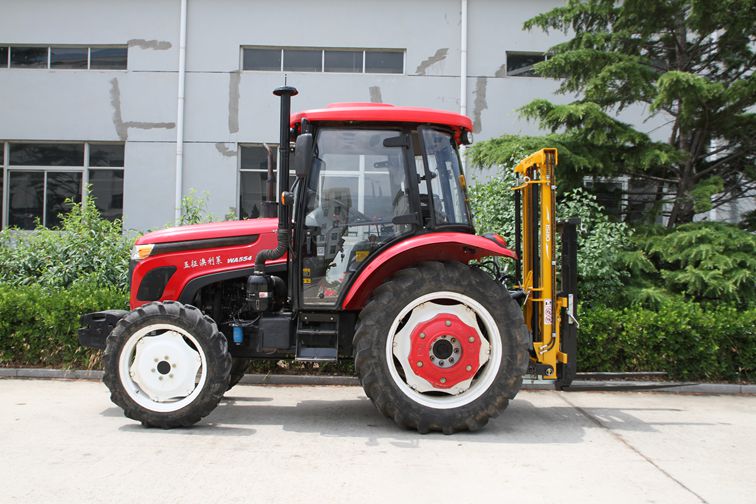

背负式叉车 是 为解决果园山地越野工况下 转运果筐和其它果园物资而研发的与果园拖拉机配合使用的果园转运装备。叉车安装在拖拉机后三点悬挂上,驾驶员通过操作液压控制阀来控制叉车动作,叉车具有举升、侧移、倾斜、锁筐等功能,配备了举升油缸2根、倾斜油缸1根、侧移油缸1根、锁紧油缸2根共计6根。可一次举升多个果箱,方便果园果箱等物资的搬运,节省人力物力。果园用户无需单独购买山地叉车,把该背负式叉车直接安装到拖拉机上即可实现山地搬运作业,拖拉机可到之处都可以使用。特别适合果园采摘后的果箱的转运工作。

Backpack forklift is a kind of orchard transportation equipment developed to solve the problem of transporting fruit baskets and other orchard materials under off-road conditions in orchard mountainous areas, which is used in conjunction with orchard tractors. The forklift is mounted on the rear three-point suspension of the tractor, and the driver controls the forklift motion by operating the hydraulic control valve. The forklift has the functions of lifting, sideshift, tilting, and basket locking. It is equipped with 2 lifting cylinders, 1 tilt cylinder, 1 sideshift cylinder, and 2 locking cylinders, totaling 6. Multiple fruit boxes can be lifted at one time to facilitate the handling of materials such as orchard fruit boxes and save manpower and material resources. Orchard users do not need to purchase a mountain forklift separately. They can directly install the backpack forklift on the tractor to achieve mountain handling operations, which can be used wherever the tractor can go. It is especially suitable for the transfer of fruit boxes after picking in orchards.



背负式叉车 产品规格表

Product specification table of Backpack forklift


序号Serial No

项目

Item

单位

Unit

主要参数

Main Parameter

1

型号名称

Model Name

/

PF 12000–A 背负式叉车

PF 12000–A Backpack forklift

2

配套动力Supporting power

kW

≥29

3

举升高度

Lifting Height

mm

2300mm

4

货叉长度

Fork length

mm

1100mm

5

侧移距离

Sideshift distance

mm

550-750mm

6

前后倾斜度

F./B. inclination

°

-5~+10

7

整机重量Weight

Kg

412kg

8

举升负载量Lifting Load

Kg

1200Kg

9

行走方式

Walking mode

/

拖拉机挂载

Tractor mounting



*参数表仅描述了基本参数,高配高功率及选装配置参数请咨询中颐公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.



*规格参数及外观,随产品开发不断更新,具体参数请咨询中颐公司,以中颐公司最新参数为准,以上参数不作为整机验收依据。咨询电话 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
