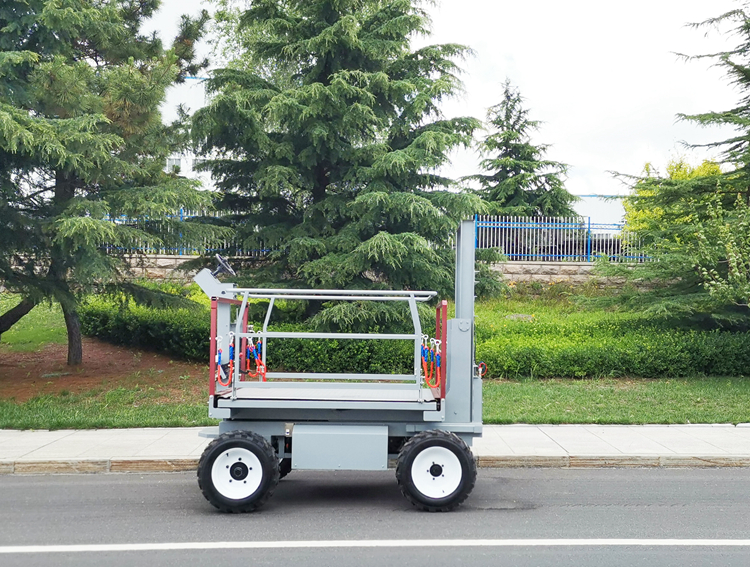

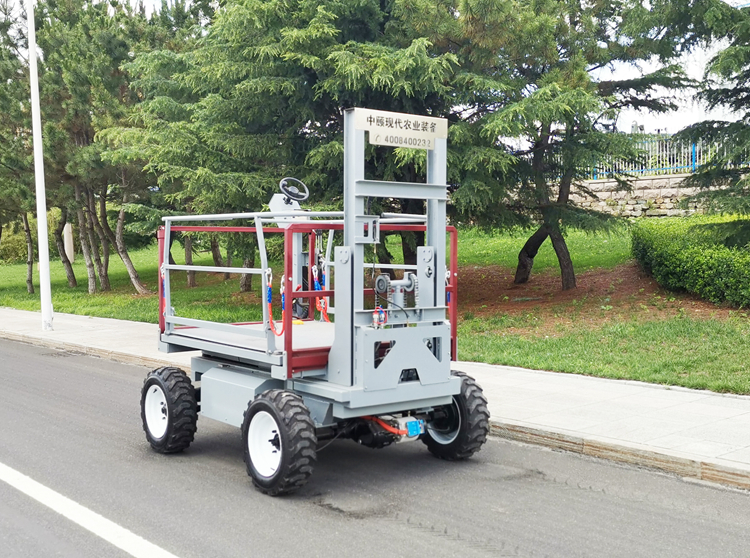

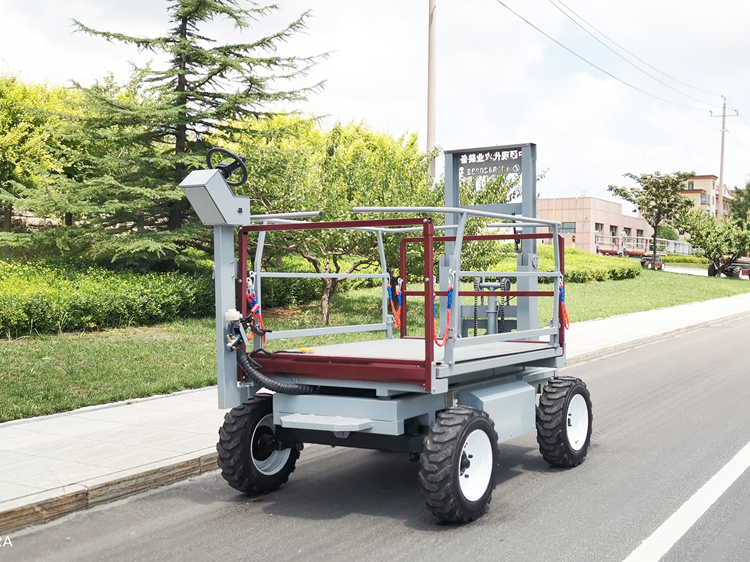

4GP-800型 经济型 电驱动 采摘作业平台
4GP-800 Economic Electric Driving Orchard Picking Platform
描述Description:
4GP-800 经济型 电驱动 采摘作业平台是中颐公司为中小规模园区用户开发的一款紧凑型采摘作业平台，具有采购成本低、结构紧凑可靠、转弯半径小、易维护等特点。
The 4GP-800 economic electric drive picking operation platform is a compact picking operation platform developed by Zoomye Company for small and medium-sized park users. It is characterized by low procurement cost, compact and reliable structure, small turning radius, easy maintenance, etc.
适合作物：苹果、梨、樱桃、桃子、柑橘、烟草、立体种植的蔬菜等
Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc
适合用户群： 中小规模园区
Suitable for user groups: small and medium-sized parks
●绿色新能源 “零”噪声污染
●Green new energy, “zero” noise pollution
●运行费用低 每天几元电费 经济性强
●Cheap and effective, it costs as low as a few money daily
●操控简单易学 行走无级调速
●Easy to operate and learn Stepless speed regulation for walking
●采用“零”落差工作台面 设计
● "Zero" drop worktable design
●采用倾角可调护栏结构
● Adopt adjustable angle guardrail structure
●采用名牌电器件 电控系统可靠耐用
●Brand electrical components are used, ensures reliable and durable electrical control system
●采用商用车辆高标准线束
● High standard harness of commercial vehicles
●采用大容量名牌动力蓄电池 使用寿命长
●High capacity brand battery is used, ensures a long service life
●采用名牌液压部件 保证液压系统的稳定性可靠性
●Brand hydraulic components are used, ensure the stability and reliability of hydraulic system
●整机结构件激光切割成型 精度极高
●Complete machine structure is formed by laser cutting with high precision
●全系标配 加宽越野轮胎
●Standard widened off-road tire are equipped as a standard for the whole series
●采用抗紫外线耐候油漆涂层
●UV resistant and weather resistant paint coating
●行走系统带有动能回收功能
● The traveling system has the function of kinetic energy recovery
●一次充电可持续工作8-32小时
●8 to 32 hours of continuous operation on a single charge
4GP-800 果园采摘作业平台 产品规格表
Product Specification Table of 4GP-800 Orchard Picking Platform
序号 Serial No. | 项 目 Item | 单位 Unit | 主要参数 Main Parameter |
1 | 型号名称Model Name | / | 4GP-800型果园采摘作业平台 4GP-800 series orchard picking platform |
2 | 结构型式Structural Style | / | 自走式Self-propelled type |
3 | 驱动型式Driving Type | / | 2轮 驱动 2WD |
4 | 升降机构类型 Type of lifting mechanism | / | 液压导轨立柱式 Hydraulic guide column type |
5 | 转向型式Steering type | / | 液压动力转向（方向盘） Hydraulic power steering (steering wheel) |
6 | 配套动力型式 Type of support power | / | 电动机 Electric motor |
7 | 配套动力Supporting power | kW | 6 |
8 | 整机外形尺寸（长×宽×高） Maximum Overall dimension(L*W*H) | mm | 2830×1750×2530 |
9 | 工作台最大尺寸（长×宽） Maximum dimension of work platform(L*W) | mm | 1820×3000 |
10 | 额定载荷Rated load | kg | 800 |
11 | 举升负载量Lifting Load | kg | 700 |
12 | 升降高度范围 Lifting height range | mm | 950～1780 |
13 | 最小离地间隙 Minimum ground clearance | mm | 210 |
14 | 轮胎型号（前轮/后轮） Tire type(Front/Rear) | / | 27×8.5-15/27×8.5-15 |
15 | 爬坡能力Climbing ability | % | 20 |
16 | 轮距Wheel tread | mm | 1530 |
17 | 工作台横向最大调平角度 Maximum horizontal leveling angle of work platform | ° | / |
18 | 工作台纵向最大调平角度 Maximum longitudinal leveling angle of work platform | ° | / |
19 | 平台升降速度 Platform rising & falling speed | mm/s | 额定负载升速：60；空载升速：75 额定负载降速：130；空载降速：120 Rated load speed rise: 60; No load speed rise: 75 Rated load deceleration: 130; No load deceleration: 120 |
20 | 最大沉降量Maximum subsidence | mm | 8 |
21 | 行走速度范围 Travel speed range | m/s | 0～1.88 |
22 | 转弯半径Turning radius | m | 3.7 |
800基本型三电配置： 铅酸动力蓄电池+直流无刷电机+直流电控
800 basic three electricity configuration: lead-acid power battery +DC brushless motor +DC electric control
※选装配置Optional:
A 增程发电机 A Extended range generator
B 电子制动 B Electronic brake
C MP3 播放器 C MP3 player
D 夜间工作灯 D Night work light
E 遮阳蓬 E Sunshade
F 太阳能辅助发电系统 F Solar auxiliary power generation system
G 后举升叉系统 G Rear lifting fork system
H 免维护动力蓄电池 H Maintenance free traction battery
I 护栏置物袋 I Guardrail storage bag
J 折叠座椅 J Folding seats
K 220V AC 交流输出 K 220V AC output
*参数表仅描述了基本型参数，选装配置参数请咨询中颐公司。
*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.
*规格参数及外观，随产品开发不断更新，具体参数请咨询中颐公司，以中颐公司最新参数为准，以上参数不作为整机验收依据。 咨询电话 4008-400-232
*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
