底盘升降运输拖车

产品属性

  • 所属类别:果园搬运车系列
  • 商品来源:中颐农装
  • 浏览次数:240
  • 发布日期:2022-09-09 08:14:41
  • 产品概述

TT2W0-B*底盘升降运输拖车

TT2W0-B * chassis lifting transport trailer

描述Description:

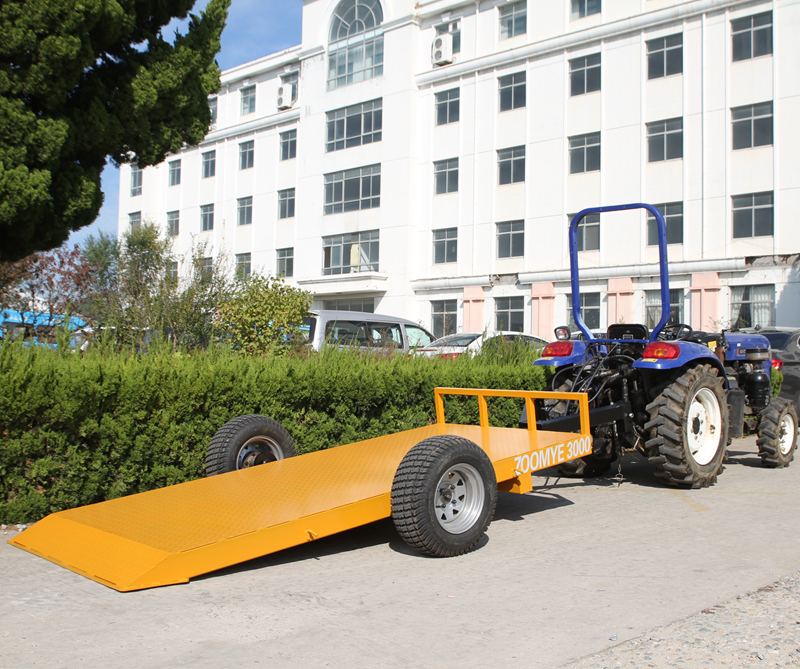

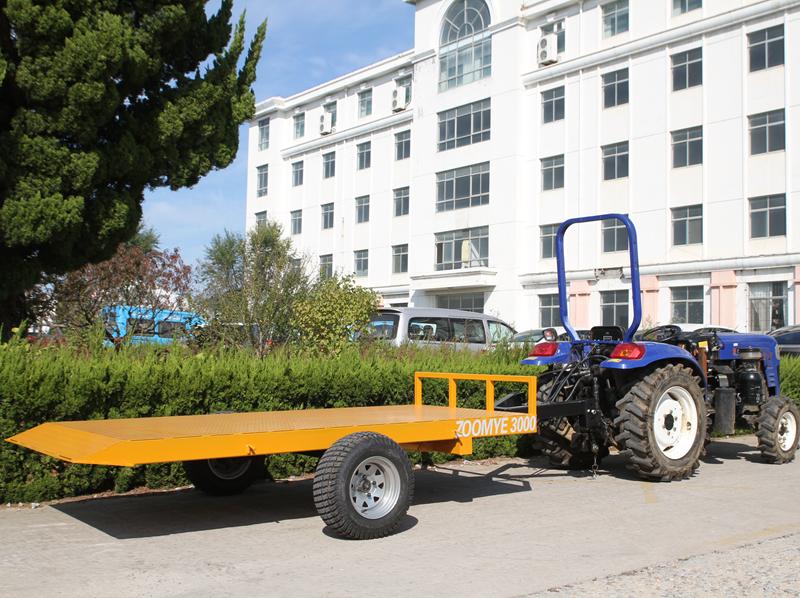

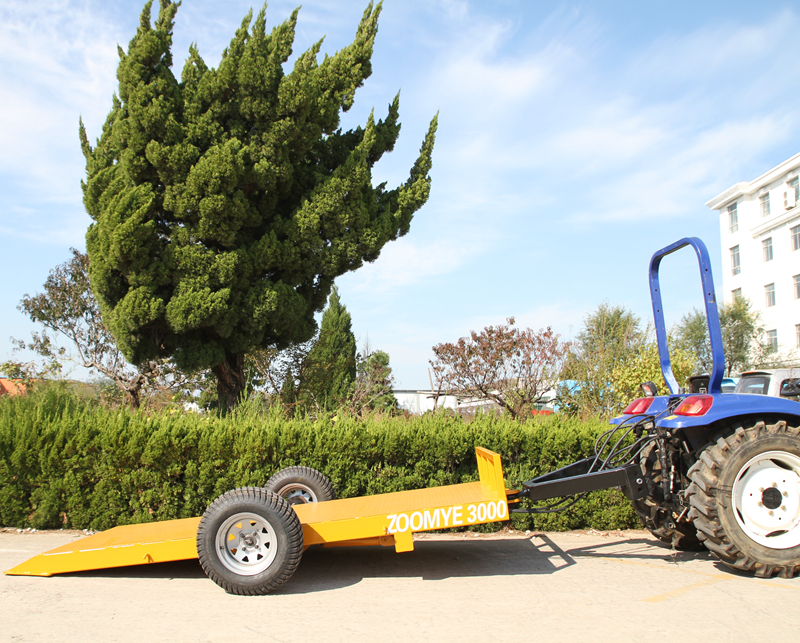

底盘升降运输拖车 是中颐公司为了解决农场 履带式装备(履带式果园管理机、履带式割草机、履带式挖掘机、履带式打药机、履带式作业平台等)转场缓慢问题、装卸困难问题(无叉车难装卸)而研发的一款多用途转运装备,它可在无叉车辅助作业工况下灵活装卸各种物资。该拖车车轴在液压油缸作用下可进行升降(升降幅度可定制),车箱底板尾部在油缸作用下可完美贴合地面,与地面形成极小夹角,方便履带式装备自由上下。其它轮式装备、果筐、物资等也可通过该拖车自由装卸而无需叉车辅助。

Chassis lifting transport trailer is a multi-purpose transport equipment developed by Zoomye Company to solve the problem of slow transition and difficult loading and unloading of farm crawler type equipment (crawler orchard management machine, crawler lawn mower, crawler excavator, crawler type pesticide sprayer, crawler type operation platform, etc.). It can flexibly load and unload various materials without forklift assistance. The trailer axle can be lifted and lowered under the action of the hydraulic cylinder (the lifting range can be customized), and the tail of the trunk bottom plate can fit perfectly with the ground under the action of the cylinder, forming a small included angle with the ground, which is convenient for the crawler type equipment to move up and down freely. Other wheeled equipment, fruit baskets, materials, etc. can also be loaded and unloaded freely through the trailer without forklift assistance.



TT2W0-B*底盘升降运输拖车 产品规格表

Product Specification Table of TT2W0-B * Chassis Lifting transport trailer



序号

Serial No.



Item



Unit

主要参数

Main Parameter

1

产品型号Model Name

/

TT2W0-B*

2

结构型式Structural Style

/

牵引式Traction type

3

配套动力Supporting power

kW

22

4

外形尺寸(长×宽×高)

Overall dimension(L*W*H)

mm

3825x1950x850(可定制)

(Customizable)

5

底板尺寸(长x宽)

Base plate size (L x W)

mm

2720x1300(可定制)

(Customizable)

6

额定载荷Rated load

kg

1000(可定制)(Customizable)

7

轮胎型号Tire type

/

23x8.5-12(可定制)(Customizable)

8

转弯半径(与拖拉机相关)

转弯半径(与拖拉机相关)

Turning radius

(Related to tractors)

m

3.2(雷沃M704拖拉机牵引)

Abt. 3.2 (towed by Lovol M704)

9

升降高度范围

Lifting height range

mm

0-602(可定制)

(Customizable)


选装配置Optional:

A液压绞盘  A Hydraulic winch

B电动绞盘  B Electric winch

C 车载液压站 C On board hydraulic station


*参数表仅描述了基本参数,高配高功率及选装配置参数请咨询中颐公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

 *规格参数及外观,随产品开发不断更新,具体参数请咨询中颐公司,以中颐公司最新参数为准,以上参数不作为整机验收依据。咨询电话 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
