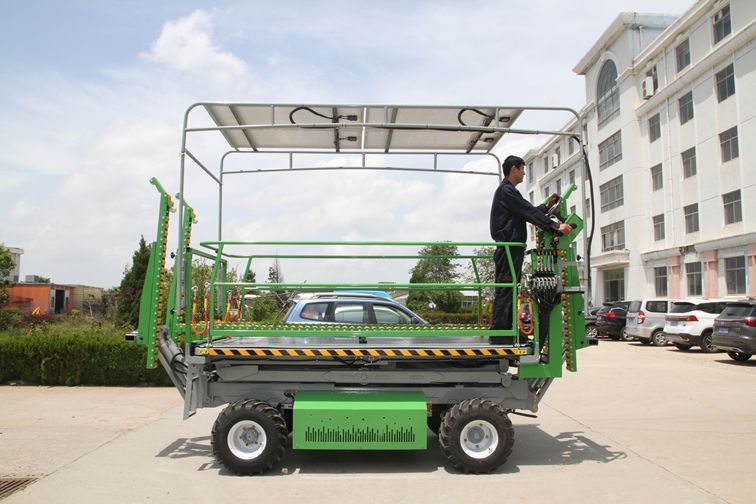

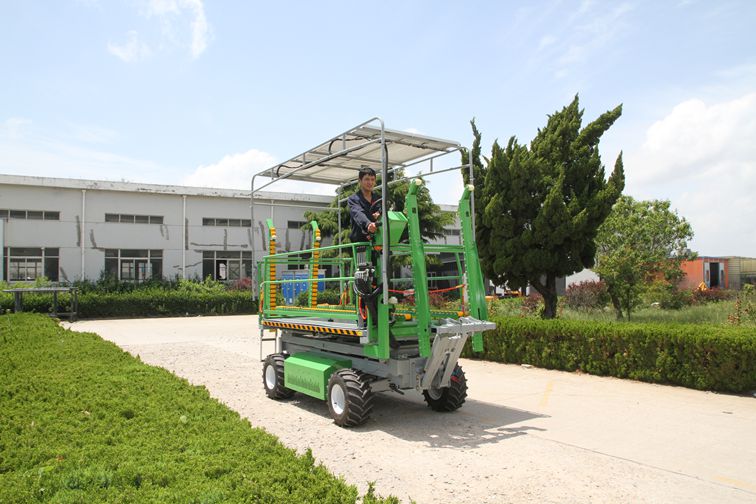

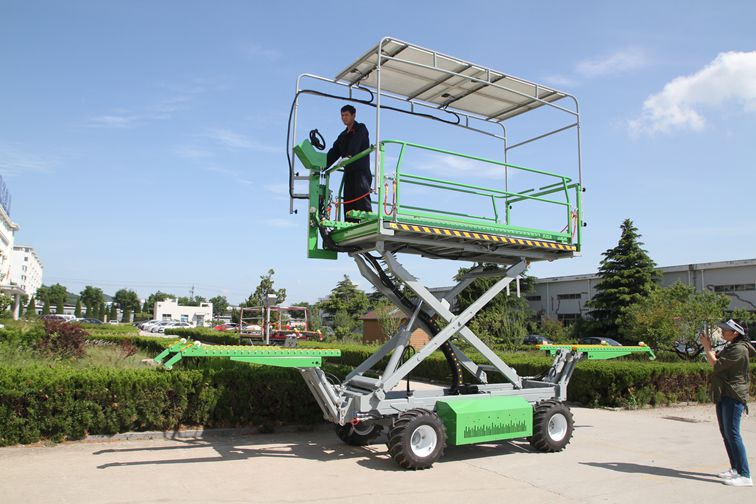

4GP-1200EP EFGL 锂电 高配高功率 出口版 作业平台+太阳能辅助发电

产品属性

  • 所属类别:自走式 果园作业平台
  • 商品来源:中颐农装
  • 浏览次数:1533
  • 发布日期:2021-10-07 10:37:24
  • 产品概述

4GP-1200EP 电驱动 采摘作业平台

4GP-1200EP electric drive picking platform


描述Description:


4GP-1200EP  电驱动 采摘作业平台是中颐公司为中大规模园区用户开发的一款全尺寸采摘作业平台,展开作业面3m x 3m,能同时容纳作业人员6-8人+2个500公斤标准大果筐,该平台是中颐1200系列平台的高配高功率版,除了具有1200型的高性价比、高结构强度、高可靠性、高耐用性、高载荷、高效率、高兼容性、易维护等特点外,中颐公司为其配备了带有BMS管理系统的大容量锂电池组(电池容量200Ah),为其装备了采用CAN总线通信控制的交流电机和交流控制系统,使得电机及电池性组的性能都得到了极好的调教,并且为了改善坡道行驶性能,还为该机型增加了陡坡缓降功能,使其在20%的坡道上满载工作仍具有卓越的操控性,操作者可从容不迫!

4GP-1200EP electric drive picking operation platform is a full-size picking operation platform developed by Zoomye Company for medium and large-scale park users. The operating surface is 3m x 3m, which can accommodate 6-8 operators+2 500 kg standard fruit baskets at the same time. This platform is the high configuration and high power version of Zoomye 1200 series platform. In addition to the high cost performance, high structural strength, high reliability, high durability, high load, high efficiency, high compatibility In addition to the features of easy maintenance, Zoomye Company has equipped it with a large capacity lithium battery pack with BMS management system (battery capacity 200Ah), and equipped it with an AC motor and AC control system using CAN bus communication control, so that the performance of the motor and battery pack has been very well adjusted. In order to improve the driving performance on the ramp, it has also added a steep descent function for the model, It still has excellent controllability when working with full load on 20% ramp, so the operator can take it easy!


适合作物:苹果、梨、樱桃、桃子、柑橘、烟草、立体种植的蔬菜等

Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc

适合用户群: 中大规模园区

Suitable for user groups: medium and large-scale parks





●绿色新能源 “零”噪声污染

●Green new energy, “zero” noise pollution

●运行费用低 每天几元电费 经济性强

●Cheap and effective, it costs as low as a few money daily

●操控简单易学 行走无级调速

●Easy to operate and learn  Stepless speed regulation for walking

●采用高强度车身结构

● High strength body structure

●采用“零”落差工作台面 设计

● "Zero" drop worktable design

●采用倾角可调护栏结构

● Adopt adjustable angle guardrail structure

●采用名牌电器件 电控系统可靠耐用

●Brand electrical components are used, ensures reliable and durable electrical control system

●采用商用车辆高标准线束

● High standard harness of commercial vehicles

●采用大容量名牌锂离子动力蓄电池 使用寿命长

● Lithium ion power battery with large capacity and famous brand has a long service life

●采用高标准车载充电装置

● High standard on-board charging device

●采用名牌液压部件 保证液压系统的稳定性可靠性

●Brand hydraulic components are used, ensure the stability and reliability of hydraulic system

●采用名牌液压管路管件

● Hydraulic pipe fittings with famous brands

●整机结构件激光切割成型 精度极高

●Complete machine structure is formed by laser cutting with high precision

●全系标配 加宽越野轮胎

●Standard widened off-road tire are equipped as a standard for the whole series

●采用抗紫外线耐候油漆涂层

●UV resistant and weather resistant paint coating

●行走系统带有动能回收功能

● The traveling system has the function of kinetic energy recovery

●一次充电可持续工作8-32小时

●8 to 32  hours of continuous operation on a single charge

●全系标配 加宽越野轮胎


4GP-1200EP型 果园采摘作业平台 产品规格表

Product Specification Table of 4GP-1200EP Orchard Picking Platform


序号

Serial No

项    目

Item

单位

Unit

主要参数

Main Parameter

1

型号名称Model   Name

/

4GP-1200EP型果园采摘作业平台

4GP-1200EP Orchard Picking Platform

2

结构型式Structural   Style

/

自走式

Self-propelled type

3

驱动型式Driving   Type

/

2轮   驱动 2WD

4

升降机构类型Type of lifting mechanism

/

剪叉式

Scissor   fork type

5

转向型式Steering type

/

液压动力转向(方向盘)

Hydraulic   power steering

 (steering wheel)

6

配套动力型式Type of support power

/

电动机 Electric   motor

7

配套动力Supporting   power

kW

10

8

整机外形尺寸(长×宽×高)

Maximum Overall dimension(L*W*H)

mm

3725×1725×2500

9

工作台最大尺寸(长×宽)

Maximum   dimension ofwork platform(L*W)

mm

3000×3000

10

额定载荷Rated   load

kg

1200

11

举升负载量Lifting   Load

kg

1000

12

升降高度范围Lifting   height range

mm

1130~2660

13

最小离地间隙Minimum   ground clearance

mm

175

14

轮胎型号(前轮/后轮)Tire type(Front/Rear)

/

26×12.00-12/26×12.00-12

15

爬坡能力Climbing ability

%

20

16

轮距Wheel   tread

mm

1370

17

工作台横向最大调平角度

Maximum Horizontal leveling angle

of work platform

°

/

18

工作台纵向最大调平角度

Maximum Longitudinal leveling angle

of work platform

°

/

19

平台升降速度

Platform rising & falling speed

mm/s

额定负载升速:50;空载升速:60

额定负载降速:95;空载降速:90

Rated load speed rise: 50;

 No load speed   rise: 60

Rated load deceleration: 95;

No load deceleration: 90

20

最大沉降量Maximum subsidence

mm

8

21

行走速度范围

Travel speed range

m/s

0~1.94

22

转弯半径Turning radius

m

6



1200EP高配高功率型三电配置:  锂电动力蓄电池组+交流无刷电机+交流电控(CAN总线通信控制)。

High configuration high power type three electricity configuration: lithium battery pack + AC brushless motor + AC electric control (CAN bus communication control).


※选装配置Optional:


A 增程发电机  A Extended range generator

C MP3 播放器 C MP3 player

D 夜间工作灯  D Night work light

E 遮阳蓬  E Sunshade

F 太阳能辅助发电系统F Solar auxiliary power generation system

G后举升叉系统G Rear lifting fork system

I  护栏置物袋 I Guardrail storage bag

J 折叠座椅 J Folding seats

K  220V AC 交流输出 K 220V AC output

L 前举升叉系统  L Front lifting fork system



*参数表仅描述了基本型参数,选装配置参数请咨询中颐公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*规格参数及外观,随产品开发不断更新,具体参数请咨询中颐公司,以中颐公司最新参数为准,以上参数不作为整机验收依据。 咨询电话 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
